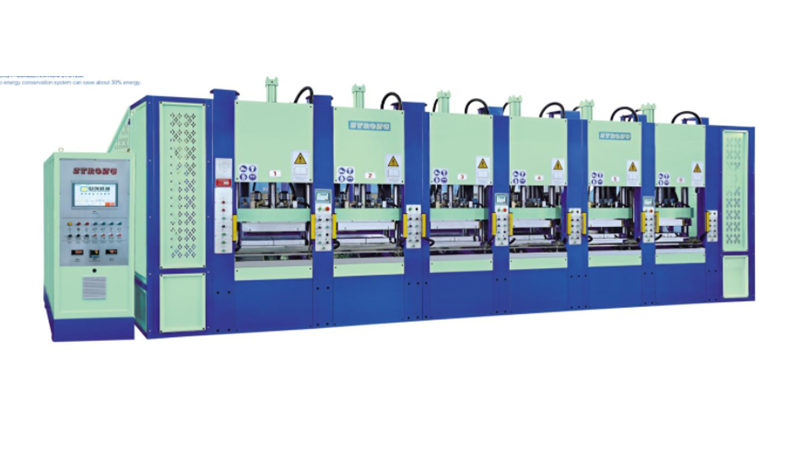

SC-906L2H-TOP+SF 全自動高精度EVA發泡注射成型機（合模力：立式180TONS）
全自動高精度EVA發泡注射成型機 （合模力：立式180TONS）
特性/Features
1操作系統：采用多屏操作系統，快速有效。
2. 射出系統：計量機構采用電位計檢測并配合PLC及PC運算，可精確控制料量。射出移座機構采用線性滑軌配合剎車馬達驅動，由變頻器控制高速位移；定位機構采用旋轉編碼器精確檢測位置。
3合模系統：兩段式快速開合模機構，具備完全閉模的檢測功能裝暨。低操作平臺，加速開模行程， 可彈性運用各種不同形式的模具。
4. 控制系統：視窗操作系統建構的控制程式， 運用圖像式人機界面， 配合觸摸式熒屏，可線上監控入料轉速、射出量、射出時間、射出溫度、 加硫時間及產量，簡單易學親和力高。PLC模組系統設計，各項功能結構清晰。
5油壓系統：采用伺服油壓系統，提高系統安全和穩定性能 ， 降低噪音，從而提高生產效率。配合電腦 控制系統可精確控制多段壓力及流量。
6節能設計：模站免通水，采用高效隔熱材料， 液壓系統采用風冷、 節約能耗。
7伺服節能系統：配伺服節能系統，節約電量約30%左右。
AUTOMATIC FOAM EVA INJECTION MOULDING MACHINE （Mould clamping force is Vertical 180 TON）
1.0PERATION SYSTEM:
Using multi-screen operation system that can be quick and efficient
2. INJECTION SYSTEM:
The measuring mechanism utilizes potentiometer detection and coordinates with the operation of PLC to control material quantity p「ecisely. The two injectors move with linear slide and b「ake motor drive, and its high-speed movement is controlled by inverter; the detent mechanism utilizes rotary encoder to detection place precisely
3. MOULD CLAMPING SYSTEM:
Two-section quick mould opening and clamping mechanism 1s equipped with detecting device that has function detection of fully mould clamping. The low operation
platform can improve mould-opening stroke and be apply to various kinds of moulds
4. PC CONTROLLING SYSTEM:
Utilize windows controlling system and human computer system, coordinates with contact screen, we can control material injection rotation speed, injection quantity, injection time, injection temperature, curing time and quantity; the system is easily learned and operated. On the PLC module system, each function and constructure is clear
5.OIL HYDRAULIC SYSTEM:
Utilized servo oil hydraulic system, improve system safety, stab小ty, decrease noise to enhance production eff芒ncy Coordinating with computer control system. we can control pressure and flow rate of different sections
precisely
6. ENERGY-CONSERVATION DESIGN
No need water circulation for mould stations, using efficient heat insulation materails, using air cooling for hyd「aulic system to save power
7. SERVO ENERGY-CONSERVATION SYSTEM
Selecting servo energy conservation system can save about 30% energy
